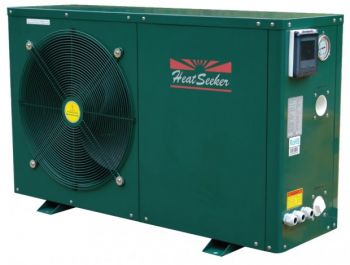

Heatseeker Swimming Pool Heat Pump 5.6kW

Ask about this product
We'll get back to you ASAP...
Code: HSE056
Product Description

Horizontal heat pump for pools from 18ft x 9ft up to 24ft x 12ft. The 5.6kW model is recommended for pools up to 20m³

The Heatseeker Swimming Pool Heat Pumps are extremely efficient and economical and a very environmentally friendly way of heating your pool. Choose from a range of sizes:- 5.6kW; 9.5kW; 12.5kW; 17kW; and 21kW. This high quality product includes a titanium heat exchanger which also makes it suitable for use with saltwater pools. Many of the components are Mitsubishi parts.

Splash & Relax
Full Product Description
Find details about this product below

Horizontal heat pump for pools from 18ft x 9ft up to 24ft x 12ft. The 5.6kW model is recommended for pools up to 20m³

MODEL POOL VOLUME
5.6kW 20m³
9.5kW 35m³
12.5kW 50m³
17kW 70m³
21kW 85m³

The sizing chart assumes that the desired pool temperature is 29°C; the ambient air temperature is not less than 15°C; and that a heat retention cover is     used. Heat loss will be greater from above ground pools compared to in-ground.

The Heatseeker Swimming Pool Heat Pumps are extremely efficient and economical and a very environmentally friendly way of heating your pool. Choose from a range of sizes:- 5.6kW; 9.5kW; 12.5kW; 17kW; and 21kW. This high quality product includes a titanium heat exchanger which also makes it suitable for use with saltwater pools. Many of the components are Mitsubishi parts.

The energy is collected from the air outside and transferred to the pool water using the same technology that is used in air-conditioning units and fridges. For each single kW used by the Heatseeker heat pump, between 4 and 5kW are returned to the pool as heat.

Features:

  • Remote digital control panel
  • Titanium heat exchanger
  • Ecological heating method
  • High efficiency compressor
  • Self diagnostic
  • Fully programmable
  • Compact design
  • Outdoor Installation
  • Quick and easy installation
  • Strong steel casing
  • Very quiet operation
  • Reverse cycle defrost
  • 2 year warranty (UK only)


Heatseeker Brochure

As fuel prices increase, it is important that you choose the most cost effective and energy efficient method of heating your swimming pool. This 5.6Kw HeatSeeker Swimming Pool Heat Pump is suitable for heating either chlorine or salt water above ground or in-ground pools that hold up to around 15,000 litres (3,300 gallons) of water.  This recommendation assumes that your desired pool temperature is 29 degrees, the ambient air temperature is not less than 15 degrees and a heat retention cover is also used.

Model Pool Volume
5.6kW 15,000 Ltrs / 3,300 Imperial Gallons
9.5kW 30,000 Ltrs / 6,600 Imperial Gallons
12.5kW 40,000 Ltrs / 8,800 Imperial Gallons
17kW 55,000 Ltrs / 12,100 Imperial Gallons
21kW 70,000 Ltrs / 15,400 Imperial Gallons

Heat Pumps work by absorbing heat from the outside air, this heat is then compressed and transferred to your pool water.

The efficiency of Heat Pumps is measured by a "coefficient of performance" (C.O.P.). The HeatSeeker range of Swimming Heat Pumps produce a C.O.P. in excess of 5; in other words, for every 1Kw of electricity consumed, the HeatSeeker will generate 5Kw of heat for your pool water, remarkable when you consider that the most efficient electric and gas heaters produce less than 1Kw of heating for every 1Kw consumed.

HeatSeeker Swimming Pool Heat Pumps are manufactured by one of the worlds largest Heat Pump companies who have built up a proven and reliable installation record worldwide for more than 15 years now.

Thanks to their unique fan and compressor design, (Japanese engineered, the most reliable on the market) Heatseeker Heat Pumps enjoy Whisper Quiet operation. Their Programmable Digital Control allows precise control of pool temperature, this Digital Controller can be installed remotely to enable convenient finger tip operation.

With their rugged design, Heatseeker Heat Pumps are suitable for outdoor installations and are supplied complete with standard Push-fit connections for 1.5 inch swimming pool ABS pipe work. Certain adapters are also available from us for other fitments/sizes, please call 0800 032 4537.

The capital outlay of purchasing a Heat Pump has in the past been higher than other methods of heating swimming pool water. As Heat Pump technology has gained in popularity the cost of the equipment has reduced and It is now possible to buy a quality swimming pool Heat Pump at an affordable price.

Being extremely simple to install and available at a very attractive price, Heatseeker Heat Pumps are a very popular choice of heating for domestic pool owners here in the United Kingdom. Typically, in our seasonal conditions, these Heat Pumps perform most efficiently between the months of May through to September.

Heatseeker Swimming Pool Heat Pumps are supplied with an additional extended parts only warranty, consisting of 2 years on the compressor and 5 years on the Heat exchanger.

Please read the information in the instruction manual before connecting. It is compulsory that a qualified electrical technician must check or install the wiring. Connection made by unprofessional people may cause injury even death. The manufacturer shall not be responsible for the consequences of connection made by unqualified people or disregarding the manual.

Why choose a heat pump?

Simply because it's inexpensive - to buy - to run - to install.

Realistically, in this country, all swimming pools whether above or in-ground, need heating to obtain the maximum use from the summer season. Having a pool in your garden may be aesthetically pleasing to the eye but unless the pool feels warm and inviting, the pool will not be used to its full potential. By investing in a Heat Pump, this can change!

Generally, the main heating systems available for swimming pools are Gas (LPG or Propane), Electric or Oil heaters. Some of these heaters can be beneficial from a cost point of view but tend to lose their appeal when it comes to installation costs.

A heat pump does not generate heat, it simply captures it and moves it from air to water thus, providing an efficient and environmentally friendly system for heating your swimming pool!

How Does A Heat Pump Work?

A Swimming Pool Heat Pump is a super efficient way of heating your Swimming Pool as it uses advanced refrigeration technology to capture the heat in the outside air and transfer it to your swimming pool water. It works in fact like a fridge in reverse. For every unit of electricity that you put in to run the compressor you will get approx. 4.6 units of heat out of the heat pump- so nearly 80% of the energy is FREE!

To heat your pool correctly you will need to run your filtration for a minimum of 12 hours a day throughout the season and use a solar cover when the pool is not in use.
