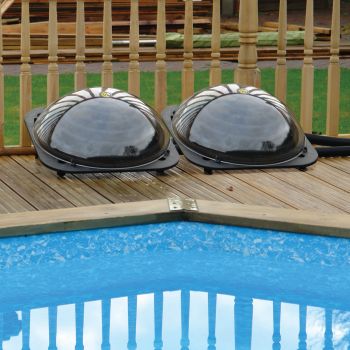

Solar Pod Plus Solar Heating Kit For Swimming Pools
The Plastica Solar Pod is designed as an additional source of heating for your swimming pool. Suitable for above ground or in-ground pools. Suitable for pools up to 9,000 litres. For larger pools simply connect up multiple units.
ZERO HEATING COSTS- harness the energy from the sun and transfer it into your pool water using "heat trap" glasshouse effect technology.
UNIQUE DESIGN- the compact contemporary design makes the Solar Pod an attractive addition to your garden.
FOR ALL ABOVE GROUND POOLS- one pod is suitable for pools up to 4500 litres. For larger pools simply connect several units in series.
SIMPLE TO INSTALL- requires only a Philips screwdriver and silicone lubricant.
VIRTUALLY MAINTENANCE FREE- simply wipe the Solar Pods over with a non-abrasive cloth and store in a frost free location for the winter season.

To download Solar Pod brochure click here
FEATURES:
- For above ground and in-ground pools
- Compact size of 780mm x 780mm x 450mm
- Coil made of strong polypropylene
- Strong transparent dual polycarbonate domes
- Easy connection
- Connect multiple units for larger pools
- Works with existing pool pump*
- Minimal tools required (Philips screwdriver and silicone lubricant)
- Tilts to achieve best angle for sun
- No servicing required (other than winterising)
- Reflective underside for optimum heat gain
NOTE:- The pump supplied with your pool may not deliver sufficient flow-rate to circulate around the pool. For long pipe runs and for where the panels are elevated onto roofs etc this will almost certainly be the case. In these instances a booster pump or larger pump may be required.
Each kit includes:
- Main base with stand
- 1.25’’ to 1.5’’ hose reducer
- Collared tube adaptor
- Hose clamps
- 1m hose (38mm dia.)
- Side hose connector x2
- 360mm hose (38mm dia.)
- Clear dome
- Solar protection cover
The Plastica Solar Pod is also suitable for use with Intex Swimming Pools via the use of additional 1.25" hose.
QUANTITY REQUIRED:
|
Description
|
Width (m)
|
Length (m)
|
Water Depth (m)
|
Est. Volume (litres)
|
Solar Pods
|
|
Round
|
3.0
|
3.0
|
0.75
|
5300
|
1
|
|
Round
|
3.0
|
3.0
|
1.00
|
7100
|
1
|
|
Round
|
4.0
|
4.0
|
1.00
|
12600
|
2
|
|
Round
|
4.0
|
4.0
|
1.10
|
13800
|
2
|
|
Round
|
6.0
|
6.0
|
1.00
|
28300
|
3
|
|
Rectangular
|
3.0
|
6.0
|
0.80
|
14400
|
2
|
|
Rectangular
|
4.0
|
8.0
|
0.80
|
25600
|
3
|
|
Oval or
Octagonal
|
4.0
|
4.0
|
1.10
|
13800
|
2
|
|
Oval or
Octagonal
|
5.0
|
5.0
|
1.10
|
21600
|
3
|
|
Oval or
Octagonal
|
6.0
|
6.0
|
1.10
|
31100
|
4
|
|
Oval or
Octagonal
|
4.0
|
6.0
|
1.10
|
21800
|
3
|
|
Oval or
Octagonal
|
4.0
|
7.0
|
1.10
|
25800
|
3
|
