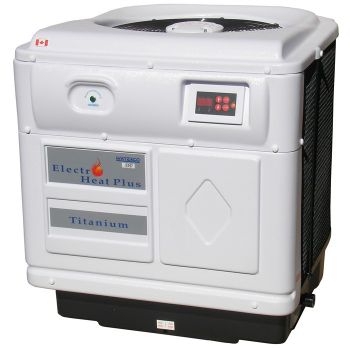

Waterco Electro Pool Heating Plus 100 31kW Heat Pump
Waterco Electro Heat Plus 100,000BTU / 31kW Heat Pump for Large Pools
The Electro Heat Plus is part of the Electroheat range from Waterco. Suitable for swimming pools with a surface area over 100m2 they feature the latest advancement in swimming pool heating, Electroheat Heat Pumps are an energy efficient way to heat your swimming pool or spa. ElectroHeat produce up to 5 times more heat energy than the electrical energy it consumes.
How a Heat Pump works:-
Electroheat extracts heat energy from the surrounding air and transfers the heat energy to the water of the swimming pool. Electroheat works like a reversed air conditioner, using an evaporator, a compressor, and condenser to heat water instead of cooling air.
Step 1 Capture
The fan circulates air through the outer evaporator air coil that acts as a heat collector and absorbs heat from the ambient air. The liquid refrigerant in the air coil absorbs the available heat in the air transforming it to a gas.
Step 2 Transfer
The compressor then receives the warmed refrigerant and intensifies the heat. The intensely hot refrigerant is then pumped into the heat exchanger (condenser).
Step 3 Heat Exchange
The heat from the hot refrigerant fl owing inside the heat exchanger is then transferred to the pool water, via the surface of the heat exchanger.s coils.
Step 4 The cycle begins again
The refrigerant is then ready to restart the process and flows into the evaporator air coil to collect heat again.
Low running costs
Electroheat will keep your pool water warm 24 hours a day without the need to worry about your energy bills.
Due to their high efficiency, heat pumps have low running costs. Heat pumps only require energy to operate a compressor and a fan motor, using low amperage in the process. The ElectroHeat produces up to five times more heat energy than the electrical power it consumes. This means that for every 1kW of electricity consumed, ElectroHeat can produce up to 5 kW of heat. An Electroheat will offer you significant operating cost savings versus fossil fuel heaters. They can save you up to 50% over natural gas heaters and over 500% against electrical heaters
Latest in Technology and Design
Electroheat heat pumps incorporate the latest technology in design and construction. At the heart of the Electroheat are Scroll compressors and Titanium heat exchangers.
The Waterco range of swimming pool Heat Pumps from Plastica are available in single-phase, from stock. With outputs ranging from the 35,000 BTU 7kW model up to the 150,000 BTU 44kW model offering a very competitively priced heating option with the benefit og "Green energy" saving technology.
The Electro Heat 55 model is 55,000 BTU 16kW and can also be used on the larger above ground pools and would also be suitable for small in-ground pools that may operate on an extended season basis.
The Electro Heat Plus is a comprehensive range of units to cover pools of 100m2 surface area and above.
Sizes range from 55,000 BTU to 150,000 BTU, with 6 models.
All models have the following features:-
- One piece titanium heat exchangers, offering outstanding protection against chlorine, bromine, ozone, salt and baquacil treated water.
- Durable weatherproof UV treated ABS plastic cabinets.
- Acoustic compressor covers for super quiet operation.
- Digital thermostat (manual on the Compac).
- Integral protection devices.
- Class leading COP (co-efficient of Performance) of 5.2
