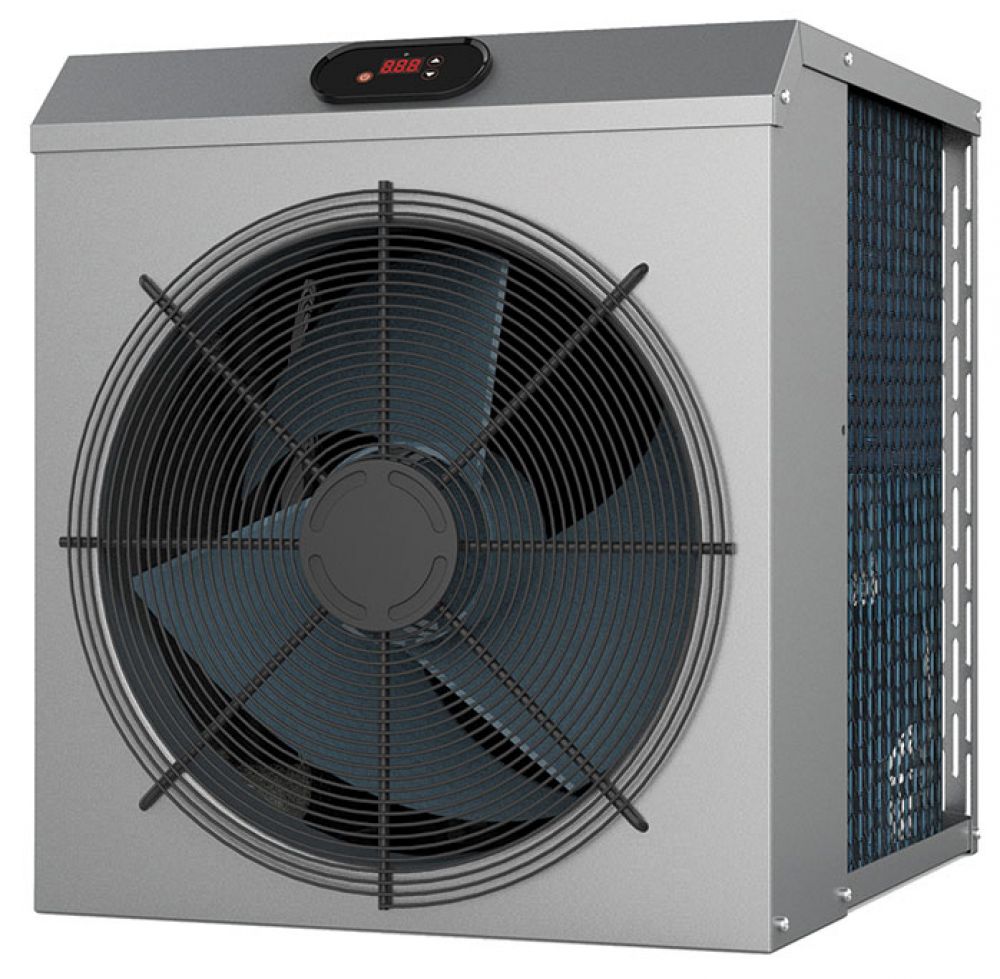

PoolStyle Mini Swimming Pool Heat Pump 5.8kW
Top reasons to buy
- Approx. 9p per hour running costs
- No electrician costs needed to hardwire
- Made by Splash & Relax
- Free Delivery!
The PoolStyle Mini is a compact plug and play heat pump range is suitable for above-ground pools up to 35m³. Summer use only when air temperature is above 10°C. Available in two sizes:- 5,8kW and 7kW.
If you have a question about this product, please use the area below, click 'SUBMIT' when you're done and we'll get back to you ASAP!
Product Detail
Poolstyle Mini Heat Pumps are designed especially for above ground pools. They come with a 3-Pin UK plug and offer a COP between 4.5 to 6.5, meaning for every £1 you spend on electricity you get an output between £4.50 and £6.50 of heating into your pool. As they are designed for Above Ground Pools they will heat when the air temperature is 10°C and will even heat water up to 40°C.
The Poolstyle Mini Heat Pump will allow you to heat you pool for an extended Summer season, normally between May to September, but of course this is dependant on the ambient air temperature.
To get the the highest heating output from your Poolstyle Mini Heat Pump we recommend using the best possible solar cover you can afford and leaving it on whenever someone is not in the pool. Having the solar cover in place during the day can increase pool water temperature, in conjunction with the Poolstyle Mini Heat Pump by up to 8°C, and at night just having the solar cover on the pool can reduce heat loss by up to 3°C per night.
The Poolstyle Mini Heat Pumps come in two heating outputs, a 5.8kw and a 7kw. These figures are based on an air temperature of 26°C, but as with all heat pumps the output decreases as the air temperature drops, so we would recommend always buying a heat pump that will heat your pool at 15°C, or slightly higher, as this will allow you to keep your pool up to temperature, even in inclement weather, meaning your pool will be swim ready when the weather changes.
FEATURES:
- Suitable for above-ground pools up to 35m³
- Maximum heating capacity 5.8kW or 7.0kW
- Summer only (air temp above 10°C)

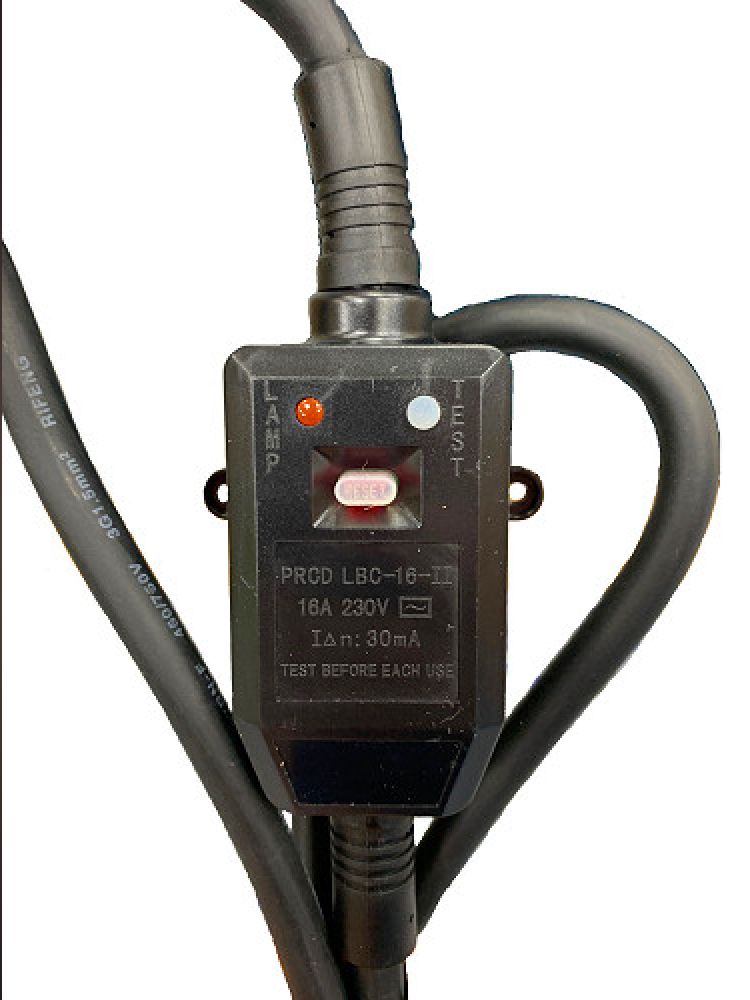

- Plug and play, fitted with RCD and plug

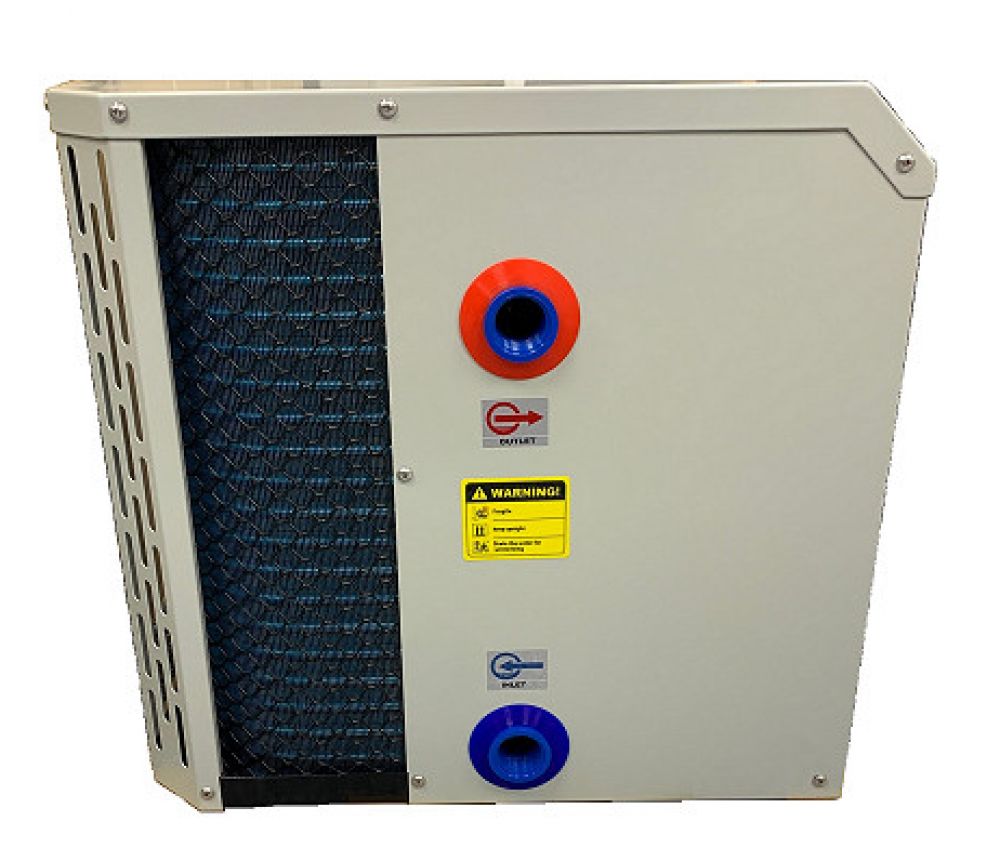

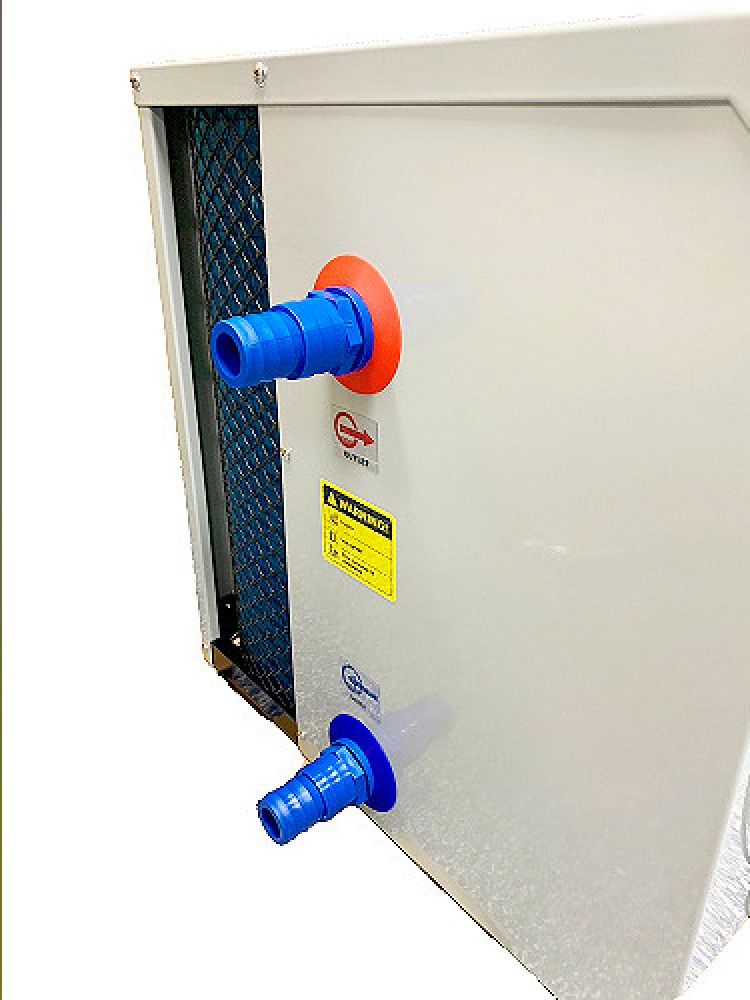

- 32/38mm stepped hose tails supplied
- Two year warranty (not on-site)
- Compact size 484 x 445 x 503mm (H x W x D)

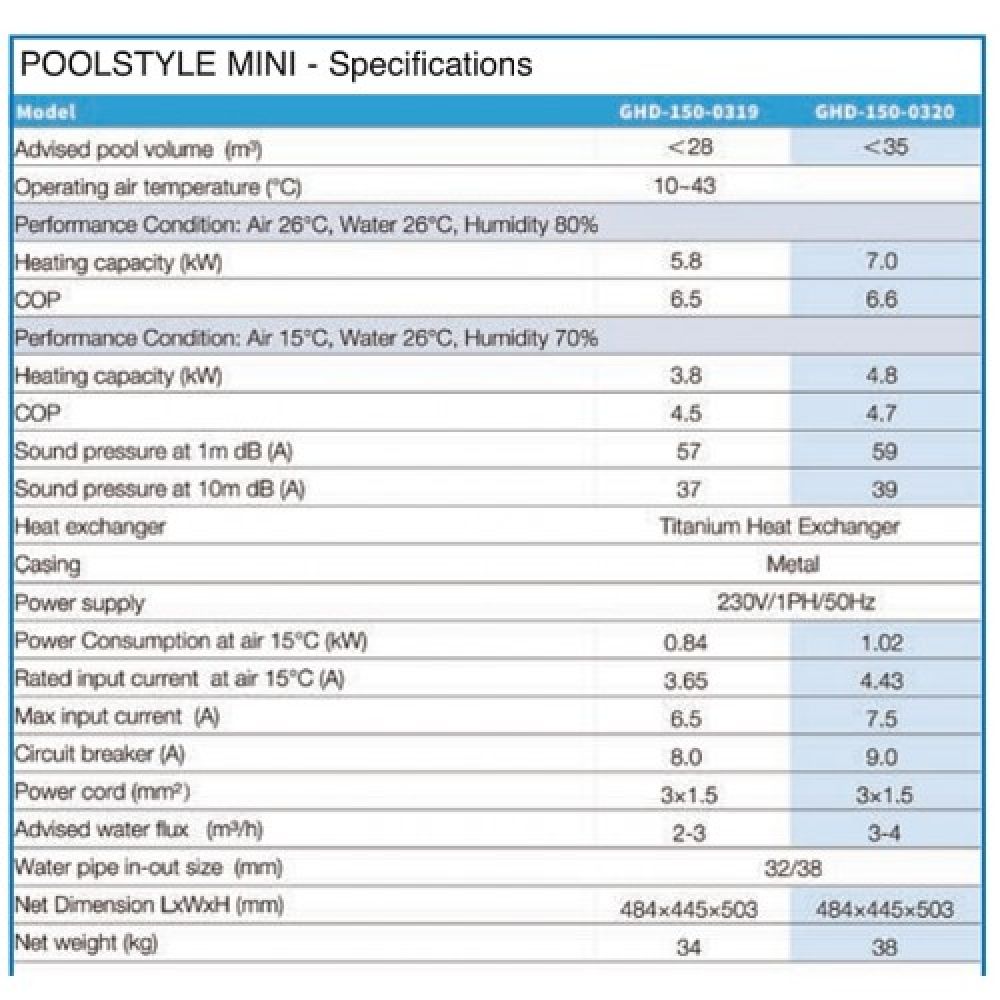

SPECIFICATION: 5.8kW / 7.0kW
- Heating capacity A26/W26: 5.8kW / 7.0kW
- Heating capacity A15/W25: 3.8kW / 4.8kW
- Recommended max pool volume: 28 / 35m³
- COP at A26/W26: 6.5 / 6.6
- COP at A15/W26: 4.5 / 4.7
- Nominal water flow: 2 / 3m³ per hour
- Power supply: 230v/1phase/50hz
- Noise at 10 m dB(A): 37 / 39
- Noise at 1 m dB(A): 57 / 59
- Water connection: to 32 and 38mm hosetail
- Net weight: 34 / 38kg
The energy is collected from the air outside and transferred to the pool water using the same technology that is used in air-conditioning units and fridges. For each single kW used by this heat pump, approx. 4kW is returned to the pool as heat.
Read the information in the instruction manual before connecting.
Warranty
For the first 2 years, parts are warranted (not on site). Parts charges will need to be paid by you if found to be a problem with setup and not a faulty item. Units cannot be returned for a refund; only swapped if the manufacturer advises that the item is not repairable.
Why choose a heat pump?
Simply because it's inexpensive - to buy - to run - to install.
Realistically, in this country, all swimming pools whether above or in-ground, need heating to obtain the maximum use from the summer season. Having a pool in your garden may be aesthetically pleasing to the eye but unless the pool feels warm and inviting, the pool will not be used to its full potential. By investing in a Heat Pump, this can change!
Generally, the main heating systems available for swimming pools are Gas (LPG or Propane), Electric or Oil heaters. Some of these heaters can be beneficial from a cost point of view but tend to lose their appeal when it comes to installation costs.
A heat pump does not generate heat, it simply captures it and moves it from air to water thus, providing an efficient and environmentally friendly system for heating your swimming pool!
How Does A Heat Pump Work?
A Swimming Pool Heat Pump is a super efficient way of heating your Swimming Pool as it uses advanced refrigeration technology to capture the heat in the outside air and transfer it to your swimming pool water. It works in fact like a fridge in reverse. For every unit of electricity that you put in to run the compressor you will get approx. 4.6 units of heat out of the heat pump- so nearly 80% of the energy is FREE!
To heat your pool correctly you will need to run your filtration for a minimum of 12 hours a day throughout the season and use a solar cover when the pool is not in use.
Product Specification
| Brand: | Splash & Relax | Box Length: | 484 mm |
| Box Height: | 445 mm | Box Width: | 503 mm |
| Code: | PSL-150-0319 | Heating Output: | 5.8 kW |
