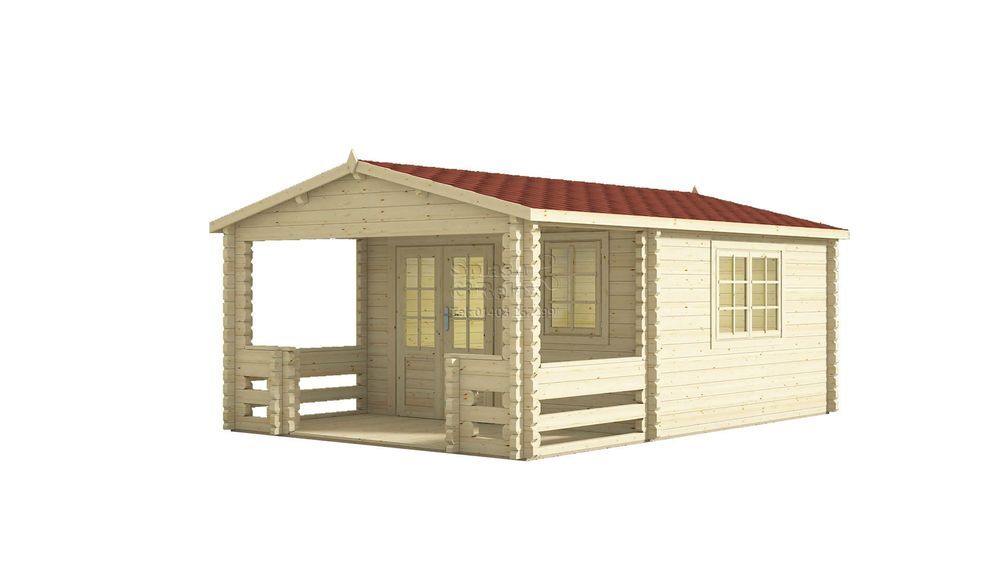

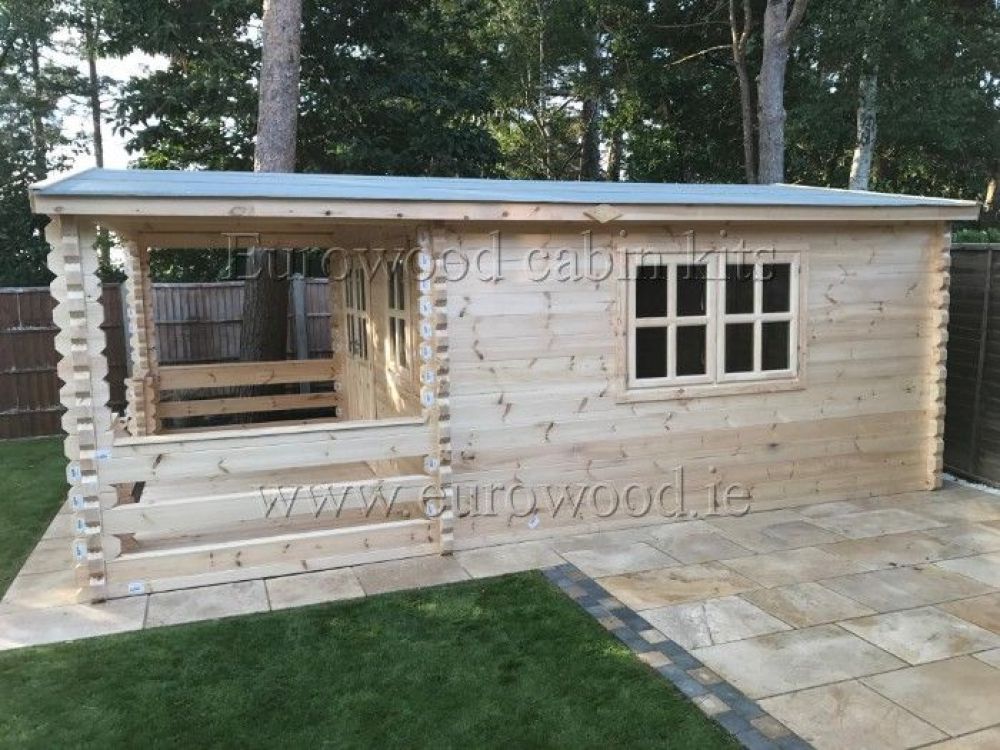

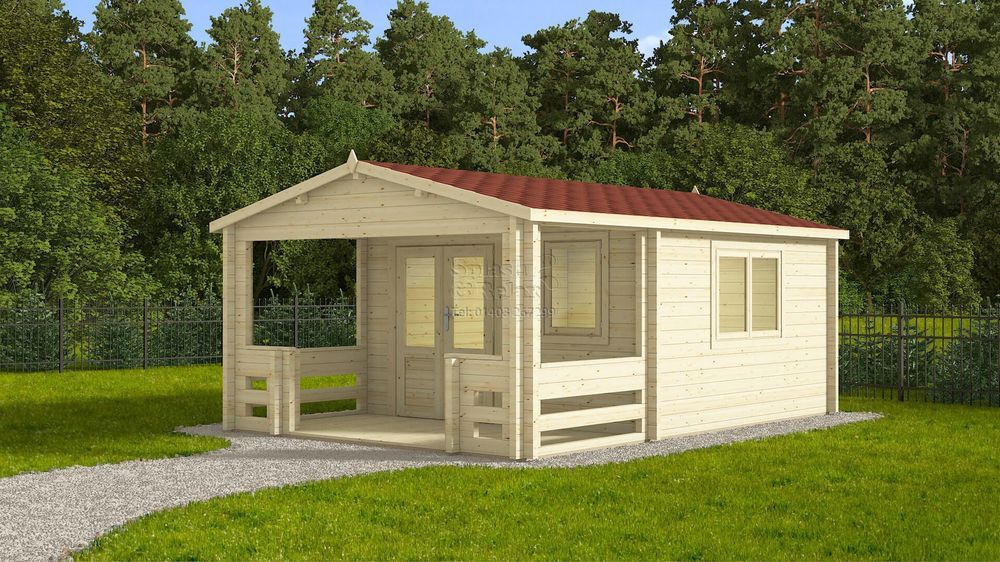

Manchester Log Cabin 4m x 5.9m
Top reasons to buy
- Flat faced 70mm wall boards with softly rounded edges
- Double grooved interlock
- Roof overhang around the whole cabin
- Includes terrace, floor and roof construction
- Made by Splash & Relax
- Free Delivery!
4,0M wide x 5,9m deep.
A 70mm wall thickness T&G log cabin.
If you have a question about this product, please use the area below, click 'SUBMIT' when you're done and we'll get back to you ASAP!
Product Detail
Our range of leisure cabins offer the ideal solution when planning an extension to your home. Made from high quality timber, all floors, walls and ceilings have tongue and groove construction. The cabins have an impressive wall thickness of between 44mm and 90mm, are attractively finished inside and so are well suited for use as a gym, sauna, office or a playhouse for young and old.
All windows are opening, and double glazing is fitted as standard. You also have the flexibility to add a veranda to create extra leisure space.
Because all of our cabins are under 4m high, planning permission is not normally required providing it is at least 5m from the main property and does not exceed more than 50% of the total garden area. However, you should check first with your local planning department.
Following our simple instructions, two people can normally erect a cabin within 1-2 days on a suitable concrete base.
Made from the highest quality and environmentally friendly timbers, these cabins are designed for long life. The doors and windows are glazed with safety glass that will not mist like perspex, whilst the optional protective shingle tiles on the roof give an attractive and snug finish.
Due to the nature of their construction the cabins are not pre-treated. However, this should be done after installation.
Overall Dimensions:
Overall: Width 4.m x Depth 5.85m
Base: Width 3.8.m x Depth 5.7m
Overall Height: 2.62m
Height at sides: 2.09m
Roof area: 30m2
Internal Dimensions :
Floor: Width 3.948m x Depth 3.97m
Internal area: 13.70m2
Terrace area: 6.63m2
Roof Demensions:
Roof length: 6.04 m
Roof width: 4.7 m
Roof overhang (Sides): 24cm
Roof overhang (Back): 9cm
Roof overhang (Front): 182cm
Windows and Doors:
Double Door, half glazed, opening out: 129.5 x 186 cm frame size
Double window (side): 138 x 91 cm frame size opening out
Single window (front): 70 x 91 cm frame size opening out
Double glazing 4-6-4mm with rubber gasket for water tightness
Features:
- Wall thickness 70mm T&G Log cabin
- Wall Boards are flat faced with softly rounded edges
- Double grooved interlock
- The overhang of the roof is around the whole cabin
- Fully opening windows
- The cabin includes the floor and roof construction
- Includes Terrace
- Roof boards: T&G, minimum 18-20mm thick
- Floor boards: T&G,minimum 20mm thick, may be finger jointed
- Terrace boards: minimum 20mm thick
- Foundation bearers 47 x 47mm, impregnated against rot
Optional Extras:
-
Shingle Tiles
PLEASE NOTE THAT PICTURES ARE SHOWN FOR ILLUSTRATION PURPOSES ONLY. ACTUAL PRODUCT MAY VARY.
Product Specification
| Brand: | Splash & Relax | Code: | Manchester |
