Bypass Kit For 50mm Heat Pumps
Top reasons to buy
- Control the flow of water to your heat pump
- Useful for winterising your heat pump
- Made by Splash & Relax
- Free Delivery!

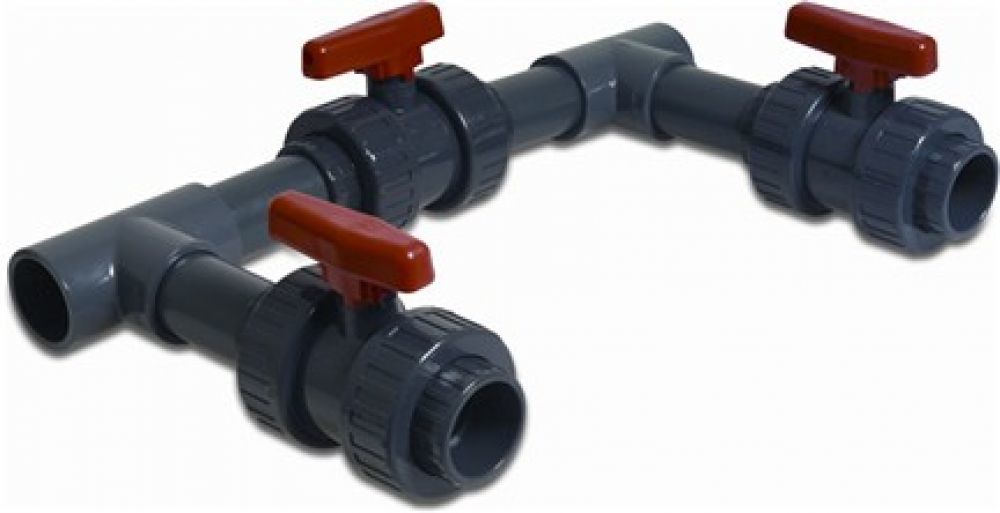

This Bypass Kit is for use with Heat Pumps that have 50mm pipe connections. Allows a heat pump to be isolated from the rest of the pool pipework system, for servicing and repairs. Also useful for winterising your Heat Pump.
If you have a question about this product, please use the area below, click 'SUBMIT' when you're done and we'll get back to you ASAP!

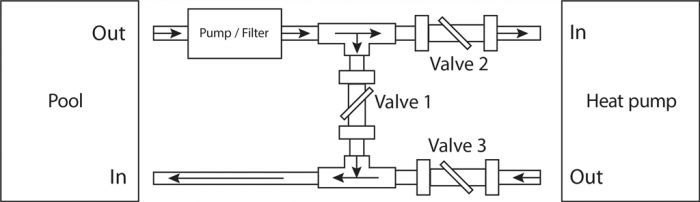

This Bypass Kit is for use with Heat Pumps that have 50mm pipe connections. The bypass kit allows you to do a number of things that can improve the effectiveness of your heat pump, solar heating or other systems that require controlling the flow of water to your heat pump. Using this bypass kit is also useful for winterising your Heat Pump without affecting the flow of water to your swimming pool.
CONTENTS:
- 2 x PVC T-Piece 50mm 16bar
- 4 x PVC Tube 50mm 10cm 10bar

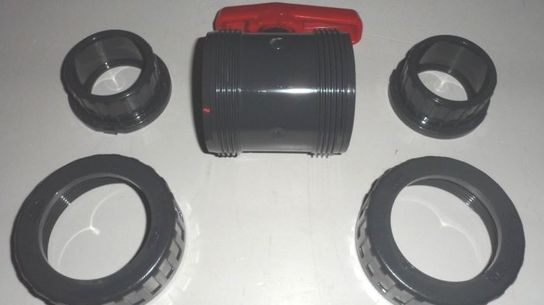

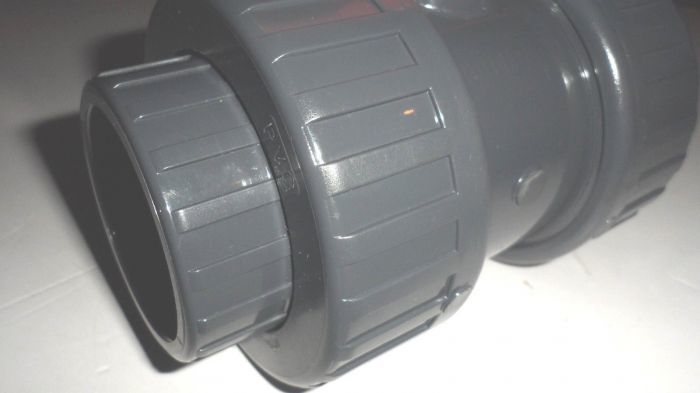

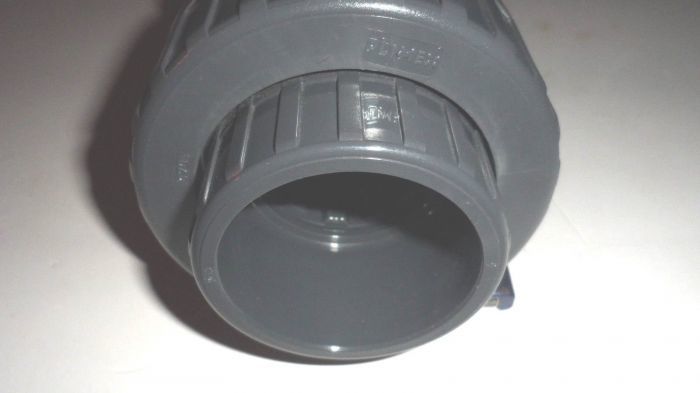

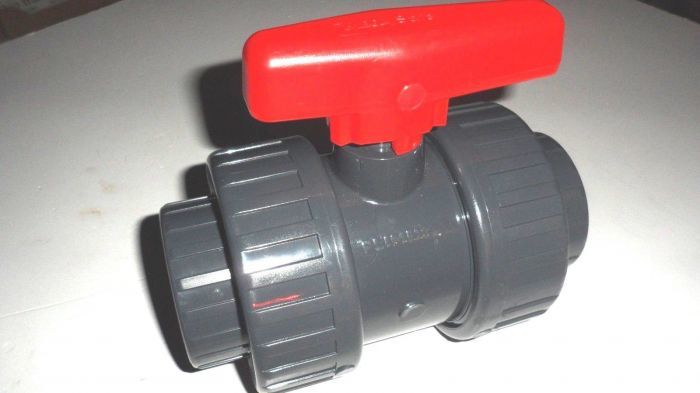

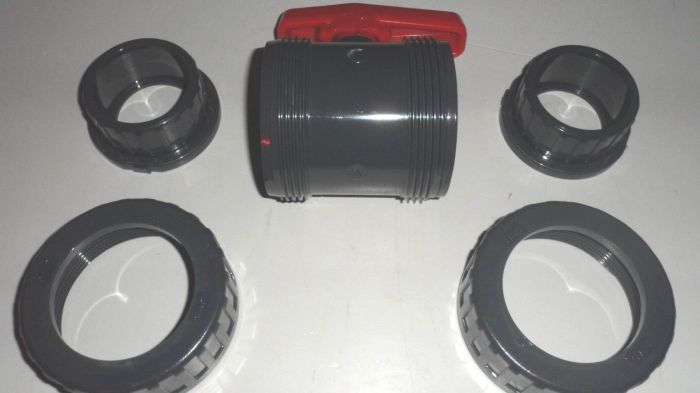

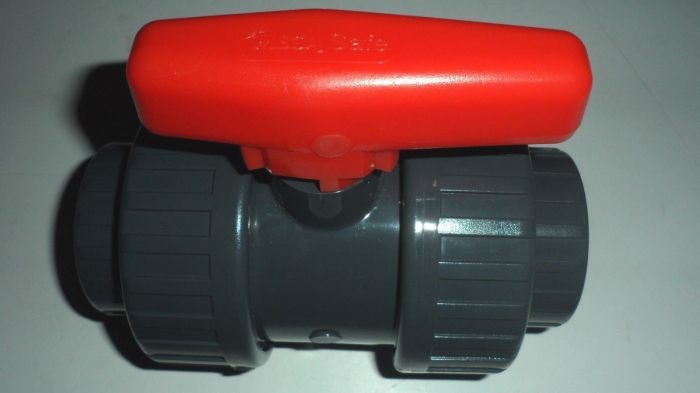

- 3 x PVC Ball valve 50 mm 16bar
- 4 x SS Hose clamp 32 x 44 mm
- 4 x ABS Hose tail white 50 x 32 mm / 38mm
- 1 x Griffon PVC glue, type T-88 0.1L
- 1 x Griffon Cleaner 125ml


Brand: | Splash & Relax | Box Length: | 300 mm |
Box Height: | 300 mm | Box Width: | 200 mm |
Code: | 7009802 |
