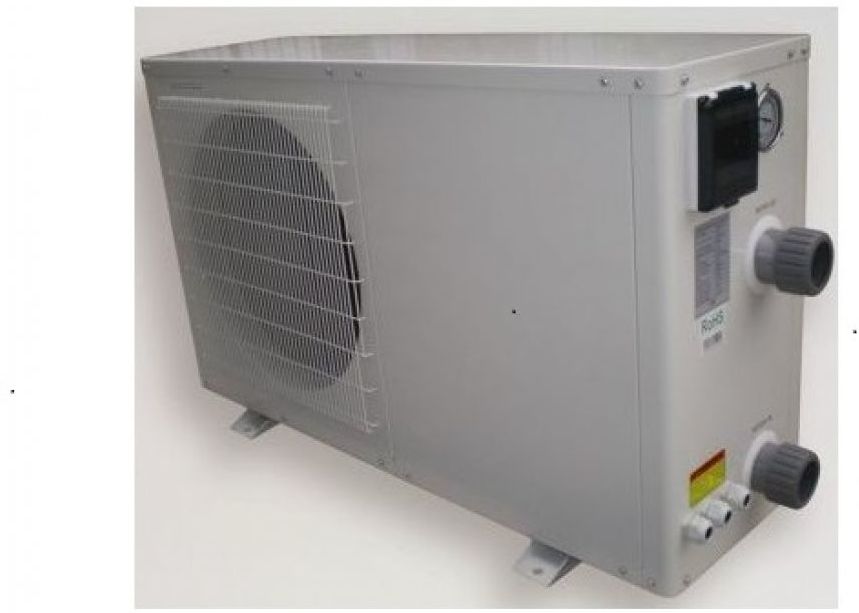

Name: Duratech Swimming Pool Heat Pump 10kW
Brand: Splash & Relax
SKU: Dura10
Price: 1695 GBP
Availability: InStock

Product Detail

The Duratech Swimming Pool Heat Pumps are extremely efficient and economical and a very environmentally friendly way of heating your pool. Choose from a wide range of sizes:- 7kW; 10kW; 13kW; 18kW; 22W; and 26kW.

FEATURES:

High efficiency coefficient up to 5.5
"All seasons" model that operates down to -5°C
Easy digital temperature control with LCD display
All functions are microprocessor controlled
Quiet running with low sound rotary compressor
Low noise fan
Automatic defrost
R407c for an environmentally friendly operation
Titanium heat exchanger resistant to salt and chlorine

The energy is collected from the air outside and transferred to the pool water using the same technology that is used in air-conditioning units and fridges. For each single kW used by the Duratech heat pump, between 4 and 5kW are returned to the pool as heat.

The gas used in the Duratech Swimming Pool Heat Pump, R407C, has no harmful effect on the ozone layer.


Duratech Brochure	Dura Eco Brochure	Duratech Brochure 1	Duratech Manual

Designed & Built For Long Life & Reliability

Using high quality materials in the build of the Duratech Heat Pump and "Duranium®", an advanced version of Titanium, for the heat exchanger means it is practically "Bullet-Proof" to erosion from Chlorine, Bromine or Salt in the water. Also, the "Duranium®" heat exchanger is oversized to improve efficiency and make the Duratech Heat Pump even more cost effective and great value for money.

Easy Installation

The Duratech Swimming Pool Heat Pump is designed intelligently and exceptionally compact for ease of installation. One of the simple but handy design additions on the Duratech Heat Pump is the integrated flow switch which will sense the water flow and automatically start the heater when the pool pump starts and stop it when the pump shuts off. Simple, but very handy. Also the larger sizes, 22T and 26T, come in 3-Phase.

State Of The Art Control

The integrated microprocessor in the Duratech Swimming Pool Heat Pump monitors all the sensors and controls the device without any intervention needed by the user. Electronic display and control with easy operation is standard on all Duratech Swimming Pool Heat Pumps.

Quiet Running

The Duratech Heat Pumps use of a highly efficient, low sound compressor, a low noise fan and an oversized heat exchanger on every unit, makes the Duratech Heat Pump extremely quiet in operation. The DURA 7 at 1m distance creates only 54dB(A) and at 10m distance gives only 32 db(A).

Ecologically Friendly Swimming Pool Heating

Duratech Swimming Pool heat pumps can save you up to 80% in operating costs compared to other forms of pool heating. Duratech heat pumps can easily pay for themselves in just a few years with the operation costs savings. Duratech Swimming Pool Heat Pumps are suitable for salt water, chlorinated and brominated swimming pools

Read the information in the manual before connecting. It is compulsory that a qualified electrical technician must check or install the wiring. Connection made by unprofessional people may cause injury even death. The manufacturer shall not be responsible for the consequences of connection made by unqualified people or disregarding the manual.

Warranty

For the first year both parts and labour are warranted. After the first year parts only applies to the following:
- The condenser and compressor 3 years.
- The heat exchanger 5 years.

Unit	mode	Dura 7	Dura 10	Dura 13	Dura 18	Dura 22	Dura 22T	Dura 26T
heating power input	kW	1.3	1.8	2.4	3.3	4.1	4.1	4.8
heating capacity	kW	6.4	9.1	11.8	16.5	20.2	20.2	24.2
heating capacity	000's BTU/H	24	34	44.5	61.5	75	75	89
maximum volume	m3	30	40	60	80	90	90	120
running current	Amp	6.6	9.2	12.1	16.5	20.9	7.9	8.9
power supply	V/Ph/ Hz	220-240/1/5	220-240/1/5	220-240/1/5	220-240/1/5	220-240/1/5	380/3/ 50	380/3/ 50
compressor quantity		1	1	1	1	1	1	1
compressor		rotary	rotary	rotary	scroll	scroll	scroll	scroll
refrigerant		R407C	R407C	R407C	R407C	R407C	R407C	R407C
fan quantity		1	1	1	1	1	1	1
fan power input	W	25	30	60	200	200	200	200
fan rotate speed	RPM	950	950	950	830	830	830	830
fan direction		horiz.	horiz.	horiz.	vertical	vertical	vertical	vertical
noise level	dB (A)	54	54	54	55	57	57	57
water connection	mm	50	50	50	50	50	50	50
nominal water flow	m/h3	3-5	5-7	6-8	8-10	10-12	10-12	11-13
dimensions (L/W/H)	cm	95/36/ 58	101/ 37/62	111/ 47/68	66/ 66/86	66/66/ 96	66/66/ 96	66/66/ 96
unit shipping dimensions (L/W/H)	cm	109/39/ 60	117/42/ 67	116.5/49/ 78	70/74/ 101	70/74/ 110	70/74/ 110	70/74/ 110
net weight/ shipping weight	Kg	54/67	63/67	99/104	108/120	111/123	111/123	112/125
Suitable For Pools Up To	000's ltrs	25	35	50	75	90	90	110

Above Ground Pool Sizing (guideline only, based on 4 ft depth)

Pool Size	Gallons	Litres	Model
15' Diameter	4400	20,000	Dura 7
18' Diameter	6350	29,000	Dura 10
19' x 12'	4900	23,000	Dura 10
23’ x 12’	5700	26,000	Dura 13

In-Ground Pool Sizing (guideline only, based on 4 ft depth)

Pool Size	Gallons	Litres	Model
20' x 10'	5610	26,000	Dura 10
28' x 14'	13000	59,000	Dura 13
30' x 15'	14000	64,000	Dura 13
32' x 16'	16000	73,000	Dura 18
36' x 18'	18500	90,000	Dura 22 / 22T
40' x 20'	24000	109,000	Dura 26T

Why choose a heat pump?

Simply because it's inexpensive - to buy - to run - to install.

Realistically, in this country, all swimming pools whether above or in-ground, need heating to obtain the maximum use from the summer season. Having a pool in your garden may be aesthetically pleasing to the eye but unless the pool feels warm and inviting, the pool will not be used to its full potential. By investing in a Heat Pump, this can change!

Generally, the main heating systems available for swimming pools are Gas (LPG or Propane), Electric or Oil heaters. Some of these heaters can be beneficial from a cost point of view but tend to lose their appeal when it comes to installation costs.

A heat pump does not generate heat, it simply captures it and moves it from air to water thus, providing an efficient and environmentally friendly system for heating your swimming pool!

How Does A Heat Pump Work?

A Swimming Pool Heat Pump is a super efficient way of heating your Swimming Pool as it uses advanced refrigeration technology to capture the heat in the outside air and transfer it to your swimming pool water. It works in fact like a fridge in reverse. For every unit of electricity that you put in to run the compressor you will get approx. 4.6 units of heat out of the heat pump- so nearly 80% of the energy is FREE!

To heat your pool correctly you will need to run your filtration for a minimum of 12 hours a day throughout the season and use a solar cover when the pool is not in use.

Product Specification

Brand:	Splash & Relax	Code:	Dura10
Heating Output:	10 kW	Phase:	Single Phase

Duratech Swimming Pool Heat Pump 10kW
