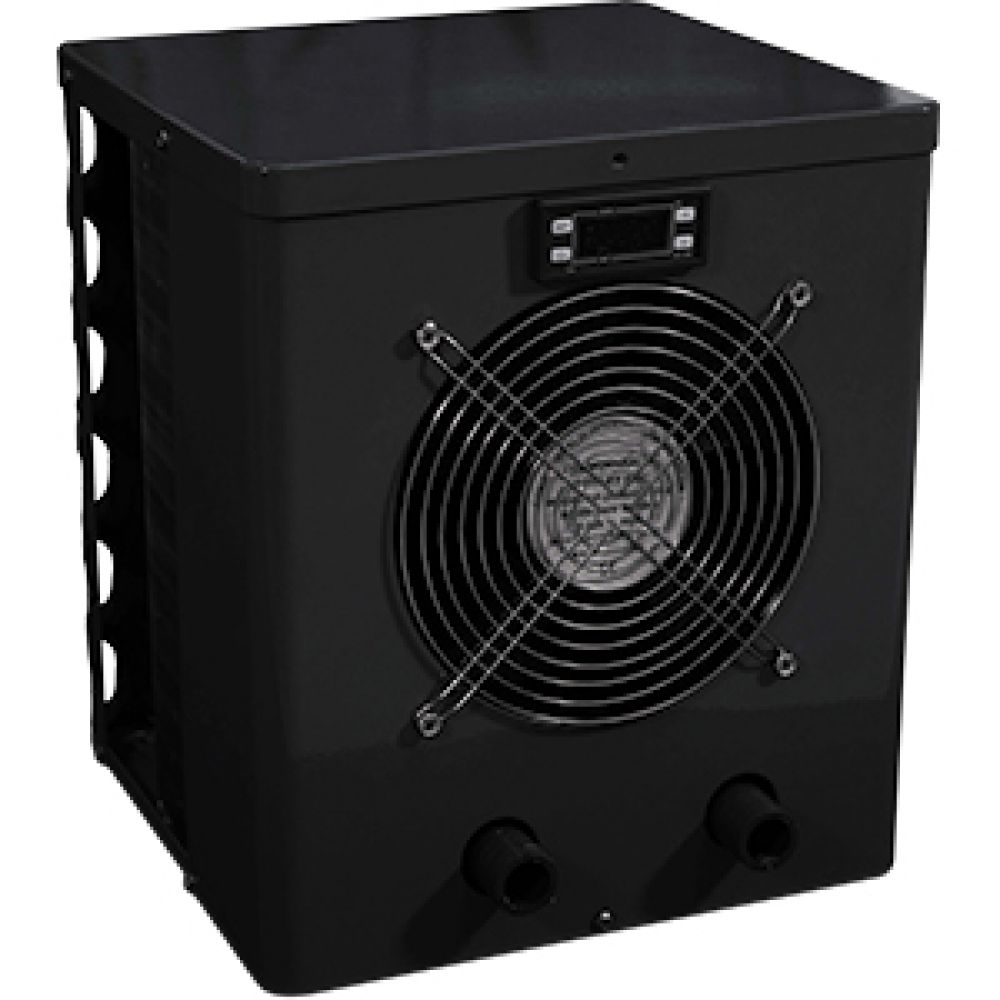

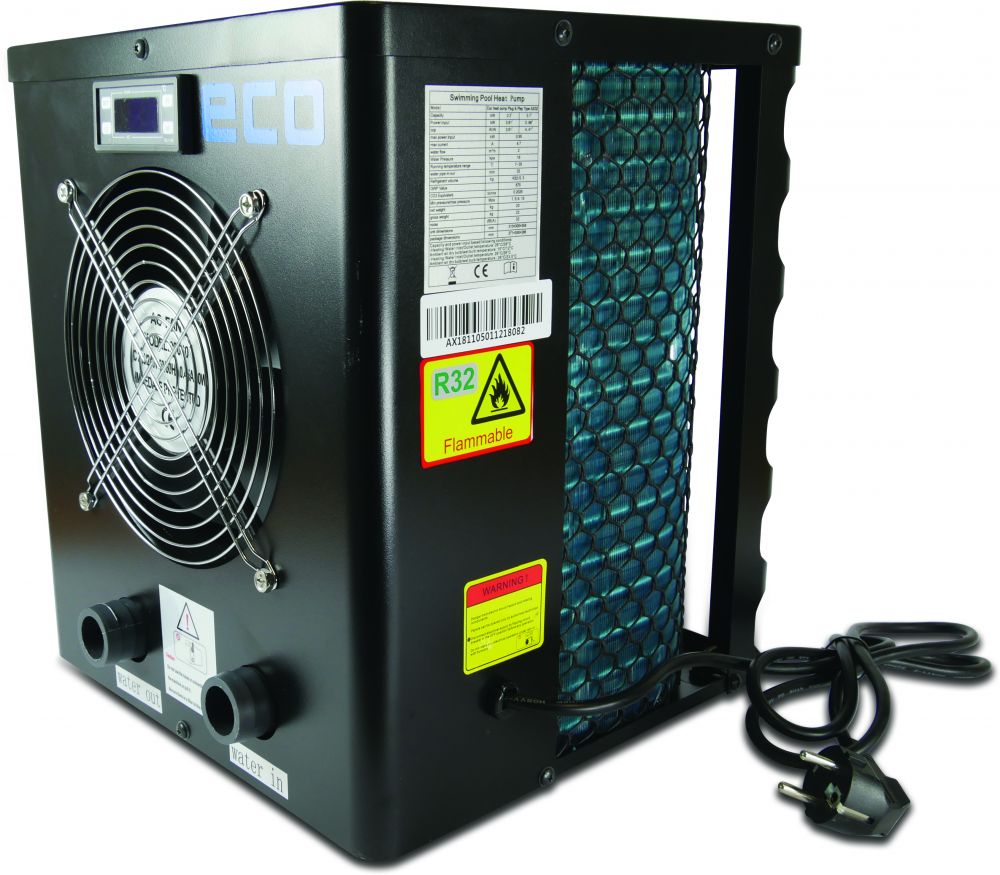

Name: Eco Plug & Play Swimming Pool Heat Pump 5kW
Brand: Splash & Relax
SKU: 7030292
Price: 649.95 GBP
Availability: InStock

Product Detail

This Plug & Play 5kw Heat Pump is ideal for small above ground pools up to 15ft diameter by 48 inches deep. Supplied with a 1.5 metre cable, it simply plugs into a 13 amp socket.

FEATURES:

Suitable for above ground pools up to 15m3
Pool volume depends on environmental conditions
Approx. 20p per hour running costs
Summer Season May to August / September
No electrician costs needed to hardwire
An ideal heat pump for Intex, Bestway & other above ground pools
2 year warranty on heat pump. 5 year warranty on compressor and heat exchanger
Operates down to 12 degrees C ambient temperature
Light and compact
Temperature safety switch included
Heating temperature up to 35 degrees C (WATER OUT)
R32 gas which has 3 times lower global warming potential than R410A
32mm hose connection

SPECIFICATION:

Heating capacity at ambient temperature 27°C / water temp 27°C is 5.1kW
Heating capacity at ambient temperature 15°C / water temp 25°C is 3.4kW
Power input: 1.3kW
Recommended max pool volume: 15m³
Max current: 5.9 amps
COP at A27/W27: 4.4
COP at A15/W25 3.58
Nominal water flow: 2.4m³ per hour
Power supply: 230v/1phase/50hz
Condenser: Titanium
Compressor type: rotary
Compressor brand: Toshiba
Noise at 10 m dB(A): <33
Noise at 1 m dB(A): <53
Water connection: 50mm to 32mm glued spigot
Refrigerant: R32
CO2 equivalent: 0.2025
Nett dimensions 43.5 x 37 x 46cm
Shipping dimensions: 46 x 42 x 49mm
Net weight/shipping weight: 28/31kg

The energy is collected from the air outside and transferred to the pool water using the same technology that is used in air-conditioning units and fridges. For each single kW used by this Eco heat pump, approx. 4kW is returned to the pool as heat.

Read the information in the instruction manual before connecting.

Warranty

For the first 12 months both parts and labour are warranted on site. Call out and parts charges will need to be paid by you if found to be a problem with setup and not a faulty item. Units cannot be returned for a refund; only swapped if the manufacturer advises that the item is not repairable.

Why choose a heat pump?

Simply because it's inexpensive - to buy - to run - to install.

Realistically, in this country, all swimming pools whether above or in-ground, need heating to obtain the maximum use from the summer season. Having a pool in your garden may be aesthetically pleasing to the eye but unless the pool feels warm and inviting, the pool will not be used to its full potential. By investing in a Heat Pump, this can change!

Generally, the main heating systems available for swimming pools are Gas (LPG or Propane), Electric or Oil heaters. Some of these heaters can be beneficial from a cost point of view but tend to lose their appeal when it comes to installation costs.

A heat pump does not generate heat, it simply captures it and moves it from air to water thus, providing an efficient and environmentally friendly system for heating your swimming pool!

How Does A Heat Pump Work?

A Swimming Pool Heat Pump is a super efficient way of heating your Swimming Pool as it uses advanced refrigeration technology to capture the heat in the outside air and transfer it to your swimming pool water. It works in fact like a fridge in reverse. For every unit of electricity that you put in to run the compressor you will get approx. 4.6 units of heat out of the heat pump- so nearly 80% of the energy is FREE!

To heat your pool correctly you will need to run your filtration for a minimum of 12 hours a day throughout the season and use a solar cover when the pool is not in use.

Product Specification

Brand:	Splash & Relax	Box Length:	460 mm
Box Height:	420 mm	Box Width:	490 mm
Code:	7030292	Heating Output:	5 kW

Eco Plug & Play Swimming Pool Heat Pump 5kW
