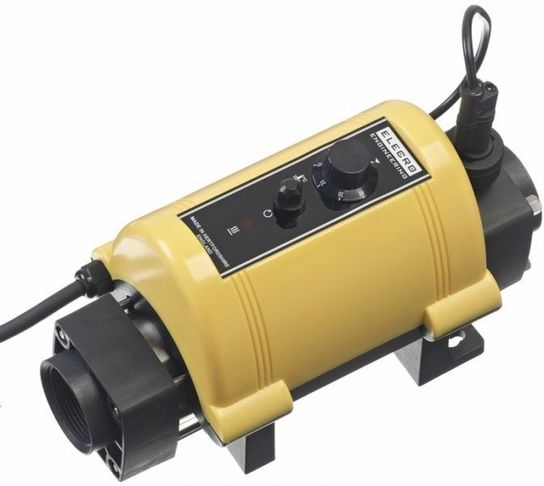

Nano Splasher Pool Heater 3kW by Elecro

  • Delivery iconFREE 2 week delivery
Top Seller

Top reasons to buy

  • Robust, durable construction
  • Titanium heating element
  • 316 Stainless Steel flow tube
  • Easy installation
  • Part of the Nano range by Elecro
  • Free Delivery!

Designed For Above Ground & Splasher Pools, the Nano 3kW heater is also an ideal heat pump top up / back Up heater.

The Nano has a 3kW power output; is pre-wired with a power lead; has an analogue control thermostat and reversible flow switch.

With titanium elements, making them suitable for saltwater pools.

×
Ask a Question

If you have a question about this product, please use the area below, click 'SUBMIT' when you're done and we'll get back to you ASAP!

Product Detail Product Detail

Designed For Above Ground & Splasher Pools, the Nano 3kW heater is also an ideal heat pump top up / back Up heater.

The Nano has a 3kW power output; is pre-wired with a power lead; has an analogue control thermostat and reversible flow switch.

FEATURES:

  • Robust, durable construction
  • Fully Equipped
  • Easy Installation
  • Titanium heating element
  • 316 Stainless Steel flow tube
  • Ultra-reliable flow switch allows safe operation as low as 1m³/hour
  • Control thermostat 0-40°C (1°C differential)
  • Safety thermal cut our 60°C (manual reset)
  • Supplied with hose tails for connections to 1¼" or 1½" flexible pipe

CONSTRUCTION:

The Elecro Nano pool heater is manufactured from top quality components and materials at the Elecro works in Hertfordshire, England.

Construction consists of a flow tube which is fitted with Inlet and Outlet mouldings manufactured from specially formulated polymer alloy material. The outlet moulding accommodates a reversible flow switch with a gold tipped reed, and Titanium fulcrum pin.

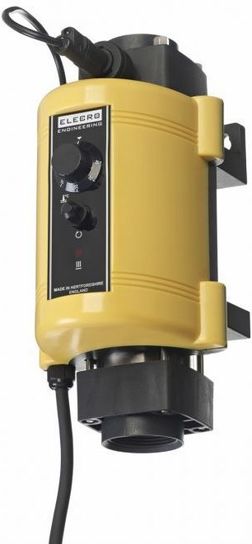

The heater is supported on two feet, this permits either vertical wall or floor mounting. The heater control components are positioned on the top face of the casing. Screw fit adapters are supplied to allow connection to standard above ground pool flexible pipe work. The water inlet and outlet fittings can facilitate connection to either metric or imperial standard pipe.

The inlet moulding has been designed to ensure full immersion of the elements, greatly reducing the risks of air locking.

OPERATION:

The desired pool temperature can be easily set on the Elecro Nano heater using the panel-mounted thermostat dial. Safety and equipment protection is provided by the highly reliable flow switch. Over-temperature protection is provided by the thermal cut out (manual reset).

White = Titanium Heating Element

Minimum Flow Requirement: 1m³ (1,000-litres) per hour

Maximum Flow Velocity: 17m³ (17,000-litres) per hour

Product Specification Product Specification
Brand:ElecroRange:Nano
Box Length:300 mmBox Height:300 mm
Box Width:150 mmCode:N-AGP-UK-T
Heating Output:3 kW
