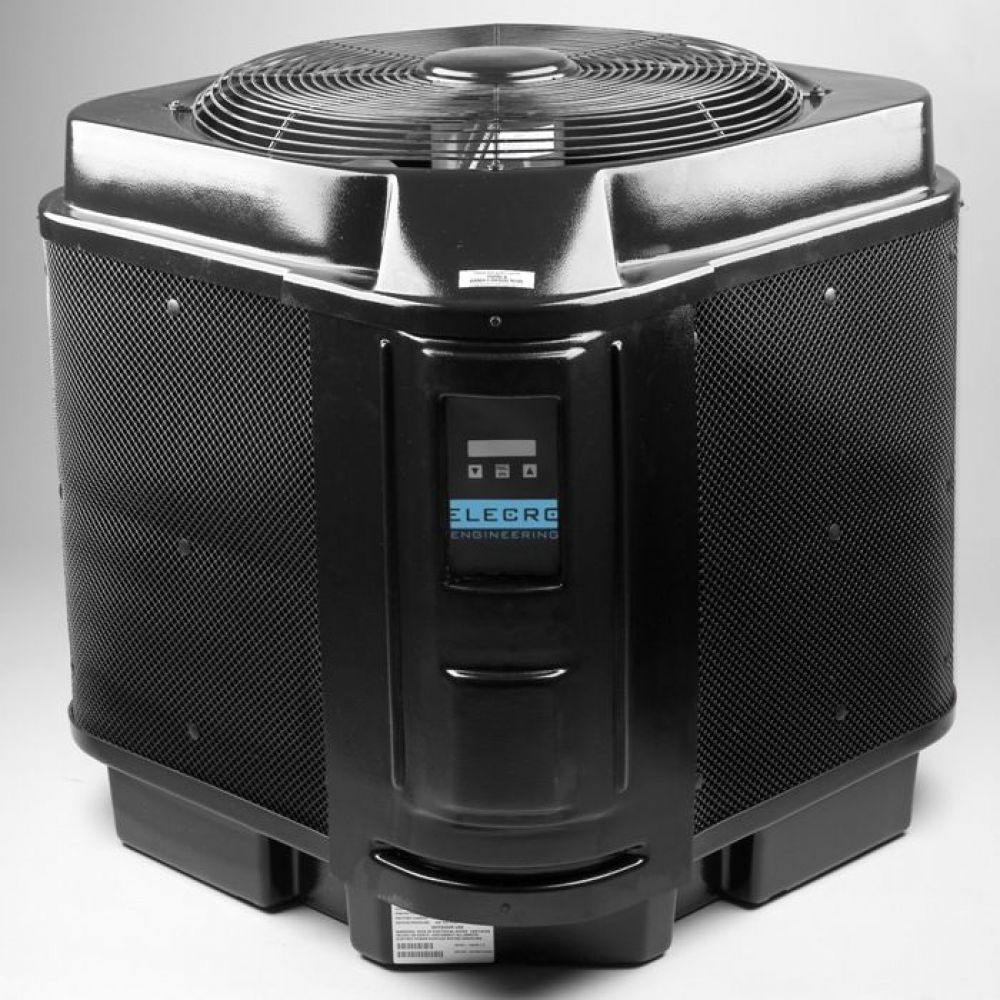

Name: Titanium Heat Pumps by Elecro
Brand: Elecro
SKU: Elecro-HP
Price: 2595 GBP
Availability: InStock

The Ultra Efficient Way To Heat Your Pool!

Elecro heat pumps are the most efficient and reliable swimming pool heat pumps available. Built to the highest possible standards Elecro heat pumps absorb heat from the air and transfer it to the pool water - making the heating process clean, efficient, ecological and most of all cost effective.

All Elecro heat pumps feature state of the art technology and are built using the highest quality components to ensure ultimate performance and reliability.

Key Features

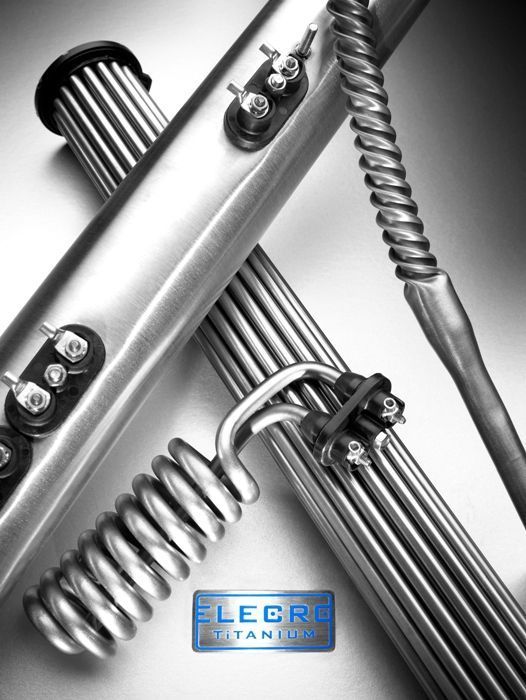

Titanium Heat Exchanger - Total protection against corrosion, full-flow no by-pass required. Zero corrosion defect 10-year guarantee.
Scroll Compressor - Efficient, reliable and silent.

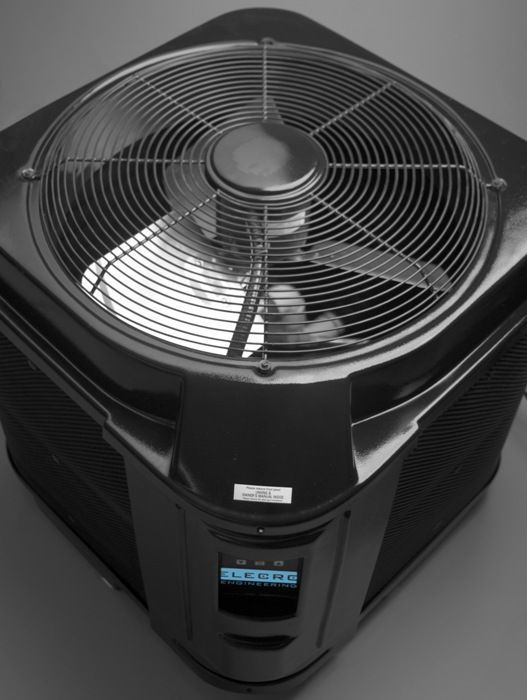

Whisper Quiet Fan - Low speed, tuned for maximum airflow and minimum noise.
Largest Evaporator - Enables higher performance. Epoxy coated for protection against corrosion.
Digital Control - State of the art, easily programmable with full diagnostic display

All Elecro heat pumps are fully supported by Elecro with 3-year parts & labour guarantee.

Technical Specifications

Model	40K BTU	49K BTU	65K BTU	100K BTU
Power Output (kW)	11.7-kW	14-kW	19-kW	29-kW
Power Consumption (kW)	2.0-kW	2.7-kW	3.4-kW	5.2-kW
COP (Coefficient of Performance)	5.9	5.3	5.6	5.6
Power Supply Voltage - Phase - Hz	220/240-1-50	220/240-1-50 or 380/400-3-50	220/240-1-50 or 380/400-3-50	220/240-1-50 or 380/400-3-50
Running Amperage	12	13 / 5	18 / 6	24 / 13
Circuit Breaker	20	30 / 15	30 / 15	40 / 20
Pipe Work Connections	1.5" / 2"	1.5" / 2"	1.5" / 2"	1.5" / 2"
Dimensions (cm)	82 x 82 x 87	82 x 82 x 87	82 x 82x 87	82 x 82 x 102
Noise Levels dBA (3m)	48-52	48-52	48-52	48-52

The above table is based on ambient air temperature & water temperature @ 25ºC

How Do Swimming Pool Heat Pumps Work?

Step 1 : The evaporator absorbs heat from the ambient air drawn through the evaporator coil by the fan (1a). The heat is transferred to the cold refrigerant flowing through the evaporator coil and the residual cooler air generated by the process is then discharged out of the heat pump by the fan (1b).

Step 2 : The compressor then receives the warmed refrigerant and by the compression action, heats it, elevating substantially the pressure inside the system. The now hot refrigerant converted to gas is then pumped to the condenser.

Step 3 : The heat from the hot refrigerant flowing inside the condenser is then transferred to the pool water, touching the exterior of the condenser coil, when flowing through the heat exchanger. In the process, the refrigerant temperature drops and the water temperature increases.

Step 4 : The now warm refrigerant flows through the pressure control regulator device (capillaries or expansion valve) greatly reducing the pressure inside the system and chilling the refrigerant to a cool state again. The refrigerant is then ready to restart the process and flow into the evaporator coil to collect the heat again.

Superior Efficiency, Low Running Costs

A swimming pool heat pump only requires energy to operate a compressor and a fan motor, requiring minimum power consumption in the process. Elecro heat pumps can produce more than 5 times more heat energy than the electrical power it consumes. This means that for every 1-kW of electricity consumed, the heat pump can produce over 5-kW of heat output into the pool water.

Elecro Heat Pump Output / Consumption Comparison

Model	Power Output (kW / BTU)	Consumption (kW/hr)
40K BTU	12-kW / 40,000-BTU	2.0
49K BTU	14-kW / 49,000-BTU	2.7
65K BTU	19-kW / 65,000-BTU	3.4
100K BTU	29-kW / 100,000-BTU	5.2

The above table is based on ambient air temperature & water temperature @ 25ºC
