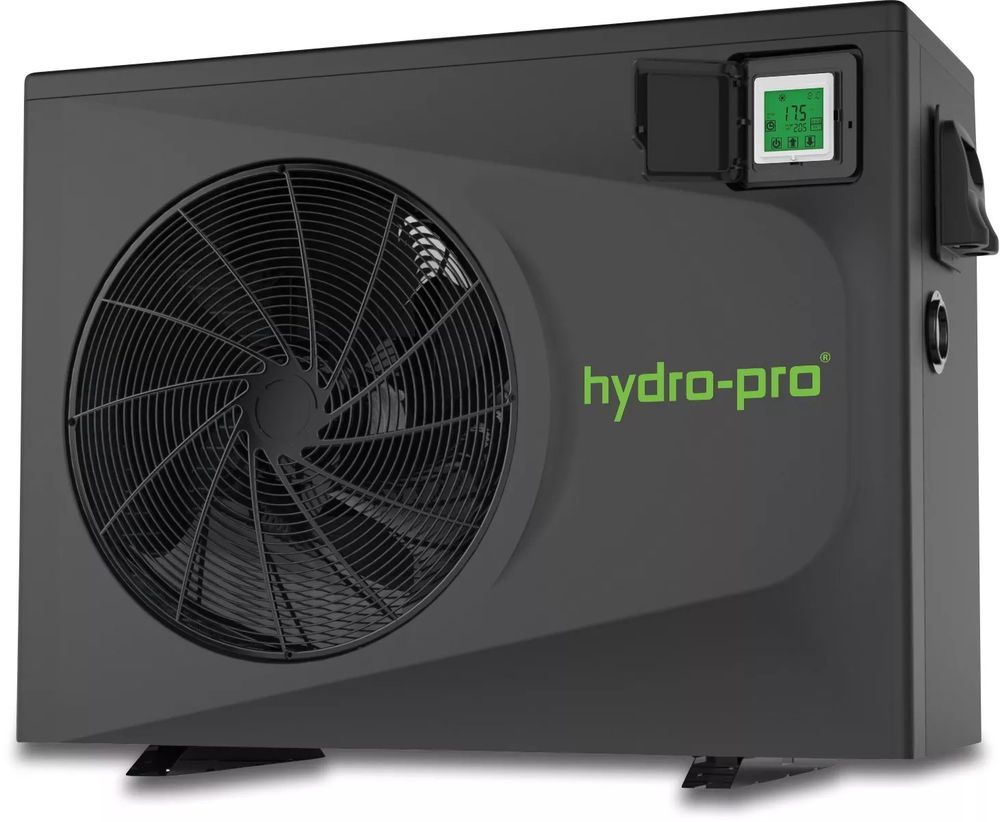

Hydro Pro Inverter ABS PIV30/32 Swimming Pool Heat Pump- 30kW
Phase:
Single Phase
Three Phase
£2,798.33
£3,357.99
Top reasons to buy
- Automatically adjust heating capacities to suit weather conditions
- Works down to -5°C (23°F)
- Titanium heat exchanger resistant to salt and chlorine
- Soft start - no voltage peaks
- Part of the Inverter ABS range by Hydro Pro
- Free Delivery!
New Season 2022 Stock Now In
The Hydro Pro Inverter Swimming Pool Heat Pumps offer the ability to vary the heating capacity to suit the weather conditions. Using the new automated Power/Smart/Silent modes, the compressor and fan speeds can be varied to reduce noise levels and energy use up to 50%.
Choose from a wide range of sizes:- 7kW; 11kW; 14kW; 17kW; 21kW; 25kW; and 30kW.
×
Ask a Question
If you have a question about this product, please use the area below, click 'SUBMIT' when you're done and we'll get back to you ASAP!
Product Detail
FEATURES:
- All season model, three heating & one cooling mode
- Inverter technology = 30% less noise & energy than standard Hydro Pro
- Quiet running, anti vibration feet, corrosion resistant ABS case
- 50mm water connections
- Reverse defrost cycle
- Energy label: A
- The heat pump Inverter provides the opportunity to automatically adjust heating capacities to suit weather conditions
- By using Power/Smart/Silent modes you can reduce energy use
- Efficient COP up to 13
- “All seasons” model works down to -7°C
- Easy digital temperature control with LCD display
- All functions are microprocessor controlled
- Quiet running with low noise rotary compressor & low noise variable speed fan
- Soft start, no voltage peaks
- R32 gas for an environmentally friendly operation
- Automatic defrost
- Titanium heat exchanger resistant to salt and chlorine
- Includes drain point and flow switch
- Winter cover included
- Wifi module optional
- Two year parts & labour warranty, requires professional electrical connection
The Hydro-Pro Inverter sizing charts are based on the following criteria: the entire pool is in the ground; ground water level is below pool construction; average water depth is 1.3m; and a heat retention cover is used for 20 hours a day. If your pool is in a very exposed location or above ground then this will reduce temperatures.
Specification
- Heating power input (max-min): 7.2-0.42kW
- Heating capacity (A27/W27) (max-min): 30-6.7kW
- Heating capacity (A15/W25) (max-min): 23.7-5.5kW
- Maximum volume (good insulation): 100-175m³
- Running current: 30.0A
- Coefficient (C.O.P.) at A27/W27: 13.5-6.3
- Coefficient (C.O.P.) at A15/W25: 7.3-4.7
- Compressor: Inverter
- Refrigerant: R32
- Fan quantity: 2
- Fan power input: 2 x 75W
- Fan rotate speed: 2 x 400-900RPM
- Fan direction: Horizontal
- Noise level (10 metres): 28-38dB(A)
- Water connection: 50mm
- Nominal water flow: 10.0m/h³
- Dimensions (L x W x H): 117 x 47 x 128cm
- Unit shipping dimensions (L x W x H): 120 x 52 x 143cm
- Net weight: 128kg
- Shipping weight: 146kg
- Minimum fuse: 40A
Warranty
For the first 2 years both parts and labour are warranted on site. Call out and parts charges will need to be paid by you if found to be a problem with setup and not a faulty item. Units cannot be returned for a refund; only swapped if the manufacturer advises that the item is not repairable.
Above Ground Pool Sizing (guideline only, based on 4 ft depth)
|
Pool Size |
Gallons |
Litres |
Model |
| 10' Diameter | 1000 | 3,800 | Hydro Pro 5 |
| 12' Diameter | 1800 | 6,700 | Hydro Pro Inverter 7 |
|
15' Diameter |
4400 |
20,000 |
Hydro Pro Inverter 11 |
|
18' Diameter |
6350 |
29,000 |
Hydro Pro Inverter 14 |
|
19' x 12' |
4900 |
23,000 |
Hydro Pro Inverter 11 |
|
23’ x 12’ |
5700 |
26,000 |
Hydro Pro Inverter 14 |
Hydro-Pro Inverter Heat Pump Brochure
Hydro-Pro Inverter Heat Pump User Manual
Product Specification
| Brand: | Hydro Pro | Range: | Inverter ABS |
| Box Length: | 1210 mm | Box Height: | 495 mm |
| Box Width: | 1300 mm | Code: | 7028290 |
| Heating Output: | 29 kW | Phase: | Single Phase |
