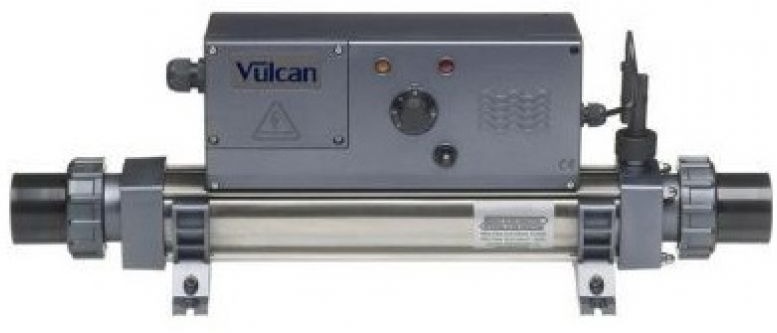

Vulcan Analogue Electric 9kW Single Phase Pool Heater by Elecro
In stockHurry, only 3 left in stock!
-
+
RRP
£1,111.99
£926.66
£499.99
inc / ex VAT
£599.99
inc / ex VAT

Vulcan Analogue Electric 9kW Single Phase Pool Heater by Elecro

  • Delivery iconFREE delivery est. Wednesday, September 30th*
  • - OR -
  • Delivery icon£3.99 Order now for delivery est. Tuesday, September 29th*
  • * We aim to deliver by our estimated delivery dates, however they can't be guaranteed.
Top Seller

Top reasons to buy

  • Titanium elements as standard
  • No pump interlock required
  • Super sensitive reversible flow switch
  • Control thermostat, safety thermostat and integral contactor relay
  • Part of the Vulcan range by Elecro
  • Free Delivery!

Elecro Electric Heaters come fully equipped and including a super sensitive reversible flow switch which allows safe coupling to most pools including wooden pools and Intex style above ground pools. They also include a control thermostat, safety thermostat and an integral contactor relay.

These heaters are very easy to install. However, they need to be hard wired they do not simply plug in.

With titanium elements making them suitable for saltwater pools.

×
Ask a Question

If you have a question about this product, please use the area below, click 'SUBMIT' when you're done and we'll get back to you ASAP!

Product Detail Product Detail

Elecro Electric Heaters come fully equipped and pre-wired including a super sensitive reversible flow switch which allows safe coupling to most pools including wooden pools and Intex style above ground pools. They also include a control thermostat, safety thermostat and an integral contactor relay.

These heaters now feature titanium elements as standard, making them suitable for saltwater pools.

These heaters are very easy to install, requiring only a final connection to a mandatory separate RCD. No pump interlock is required.

The heaters up to 6kW will require a pump with a minimum flow rate of 1000 litres per hour. 9kw and above require 4000 litres per hour.

The 3 to 9kW heaters come fitted with 1.5" BSP female threaded adapters and 1.5" to 1.25" hose tails. 12 to 18kW heaters are also supplied with the above hose tails and 1.5" socket unions.

These heaters come with a 2 year warranty, and 3 years if fitted by a professional pool engineer.

Power requirements from a 230 volt supply are as follows:-

2kW- 9amps; 3kW- 13 amp; 4.5kW- 20 amp; 6kW- 27 amp; 9kW- 40 amp; 12kW- 53 amp; 15kW- 66 amp; 18kW- 79 amp.

Three phase power requirements from a 400 volt supply are:-

9kW- 13 amp; 12kW- 18 amp; 15kW- 22 amp; 18kW- 26 amp; 24kW- 36 amp

What Size Swimming Pool Heater Do I Need?

Above Ground Pools

Pool Dimension (feet)
Volume When Filled to 6'' Below Top Rim
Minimum Recommended Heater Size
Round Pools - Diameter
UK Gallons / (Litres)
kW - Kilo Watts
12' x 3'
1761-gal / (7994-ltr)
4.5-kW
15' x 3'
2752-gal / (12494-ltr)
6-kW
15' x 4'
3854-gal / (17492-ltr)
9-kW
18' x 4'
5548-gal / (25187-ltr)
9-kW
Oval Pools L x W x D
UK Gallons / (Litres)
kW - Kilo Watts
16' x 10' x 3'
2157-gal / (9792-ltr)
4.5-kW
24' x 12' x 4'
5605-gal / (25446-ltr)
9-kW
30' x 15' x 4'
9592-gal / (43547-ltr)
15-kW

For information about how the above figures are calculated please download our latest Technical Bulletin (84K)

In Ground Pools

Pool Dimension (feet)
Volume When Filled to 6'' Below Top Rim
Minimum Recommended Heater Size
Dimension L x W x D
UK Gallons / (Litres)
kW - Kilo Watts
20' x 10' x 4.5'
4983-gal / (22620-ltr)
9-kW
24' x 12' x 4.5'
7175-gal / (32573-ltr)
12-kW
30' x 15' x 4.5'
11211-gal / (50895-ltr)
18-kW



Does Insulation Make A Difference To Pool Heating?

Does Insulation Make A Difference To Pool Heating?

Product Specification Product Specification
Brand:ElecroRange:Vulcan
Box Length:450 mmBox Height:250 mm
Box Width:75 mmCode:V-8T89
Heating Output:9 kWPhase:Single Phase
