Name: Compax Swimming Pool Enclosure
Brand: Splash & Relax
SKU: Compax
Price: 13495 GBP
Availability: InStock

Product Detail

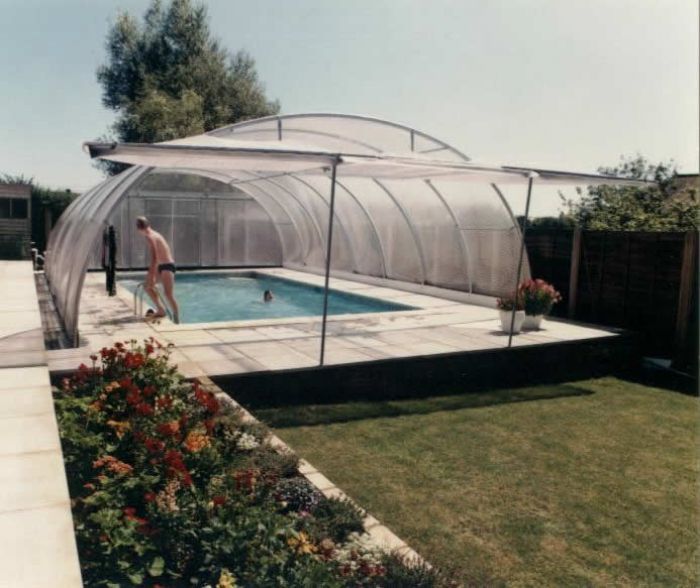

The Compax Pool Enclosure is a permanent simple clear span barrel-vault structure, glazed in replaceable panels of reinforced semi-transparent PVC. 'Open air' swimming under cover!

Lift an end canopy, and enjoy unrestricted access and superb ventilation. Add furniture and flowers, greenery (and grass, perhaps), and create a leisure area that you’ll be proud of. Suitable for most domestic and school pools- 100's have been installed throughout the UK.

The ends have a central entrance door but also lift to form a canopy. The interior is light and bright, without any sense of being enclosed. The sides curve steeply, creating excellent headroom.

The Compax enclosure can be fitted to new and existing swimming pools. Widths available are 6m, 7m, 8m, 8.5m and 9.3m, each of which is available in any length.

Access: Large conventional hinged doors are fitted centrally at eac end.

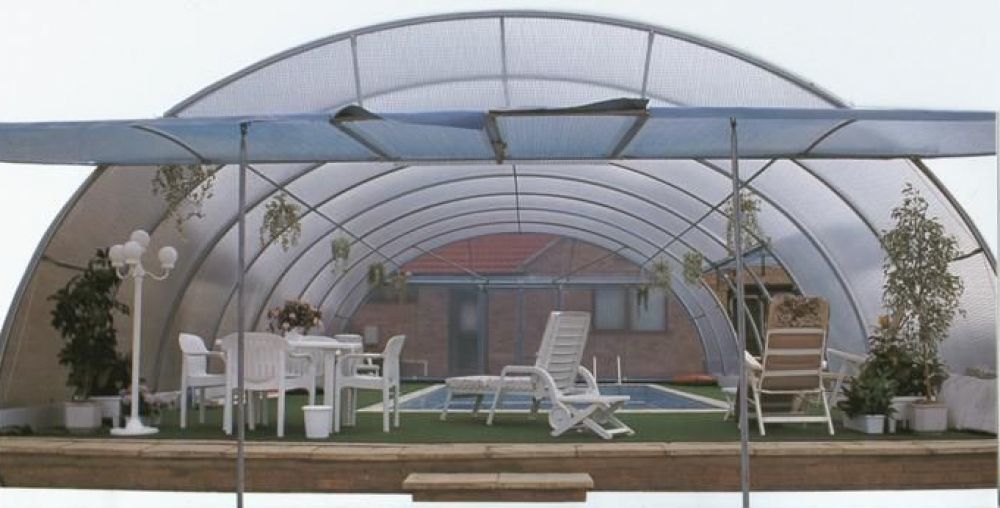

Opening End Canopy: Each end can quickly and easily be raised by 2 people to form a canopy. This canopy extends across the full width of the enclosure and provides superb ventilation in summer and unrestricted access to the pool area.

Frame: The Compax pool enclosure is constructed with a 60mm diameter galvanized tubular steel framework, and glazed with highly-tensioned panels of uV-resistant reinforced PVC. The curved interconnecting frame sections are set 1.5m apart creating a structure of great strength and durability. This design and the materials used have been proven over 30 years and are almost maintenance free.

Glazing Panels: each pair of curved frame arches is fitted with a highly tensioned panel of strong reinforced PVC fabric. The fabric transmits a lot of light into the enclosure and maximises the sun's heating properties which should help minimise pool heating costs. All main panels and end wall panels are individually replaceable.

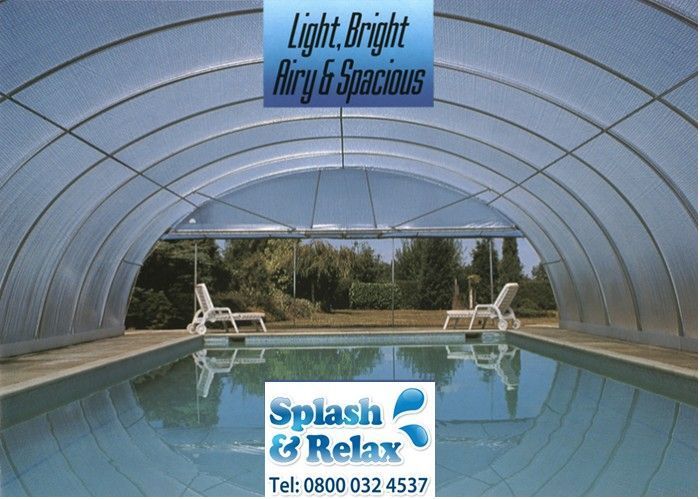

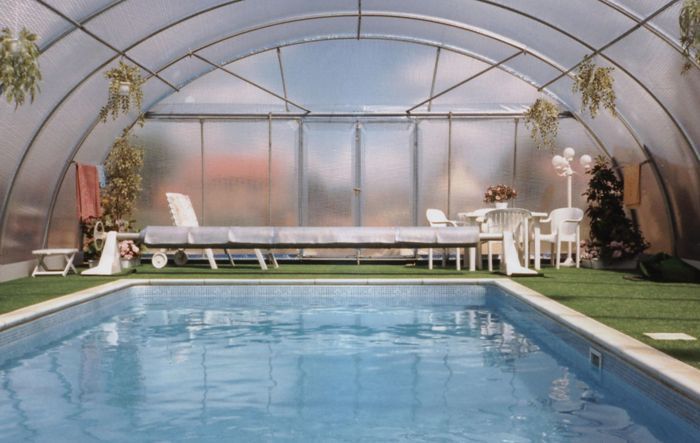

Light, Bright, Airy and Spacious: The combination of excellent light transmission through the reinforced PVC fabric panels, and the clear span design of the frame means that you will never experience a 'shut-in' or enclosed feeling. The Compax pool enclosure can truly be descibed as being light, bright, airy and spacious, and a pleasure to be in.

Headroom: Steeply curving sides provide over 200cm (over 6') of headroom just 100cm in from the side. The headroom for each ridge height 1 metre in from the side is as follows:-

Ridge Height	Headroom 1m from side
2.65m	2.05m
2.75m	2.00m
3.15m	2.25m
3.30m	2.15m
3.50m	2.25m

Foundations: If the existing pool surround is found to be unsuitable for the anchors that secure the enclosuree, strip beam foundations will be needed down both sides of the pool (not across the ends). We supply a foundation specification drawing to assist you.

Installation: we have our own experienced team. Please contact us for an accurate quotation.

Delivery: the lead-time is 3-8 weeks, direct from the factory in France.

AVAILABLE SIZES:

Ridge Height	Ref.	External Width	Overall Length	Covered Area m2
2.65m	690	6m	9m	54
2.65m	610	6m	10.5m	63
2.65m	612	6m	12m	72
2.65m	613	6m	13.5m	81
2.65m	615	6m	15m	90
2.75m	710	7m	10.5m	73
2.75m	712	7m	12m	84
2.75m	713	7m	13.5m	94
2.75m	715	7m	15m	105
3.15m	810	8m	10.5m	84
3.15m	812	8m	12m	96
3.15m	813	8m	13.5m	108
3.15m	815	8m	15m	120
3.15m	816	8m	16.5m	132
3.15m	818	8m	18m	144
3.15m	819	8m	19.5m	156
3.30m	8510	8.5m	10.5m	89
3.30m	8512	8.5m	12m	102
3.30m	8513	8.5m	13.5m	115
3.30m	8515	8.5m	15m	128
3.30m	8516	8.5m	16.5m	140
3.30m	8518	8.5m	18m	153
3.30m	8520	8.5m	19.5m	166
3.50m	9312	9.3m	12m	112
3.50m	9313	9.3m	13.5m	125
3.50m	9315	9.3m	15m	139
3.50m	9316	9.3m	16.5m	153
3.50m	9318	9.3m	18m	167
3.50m	9319	9.3m	19.5m	181

Product Specification

Brand:

Splash & Relax

Code:

Compax

Compax Swimming Pool Enclosure
